GFPVT1500-10RS光伏熔斷器（10x65)DC1500V


[附件: Download]

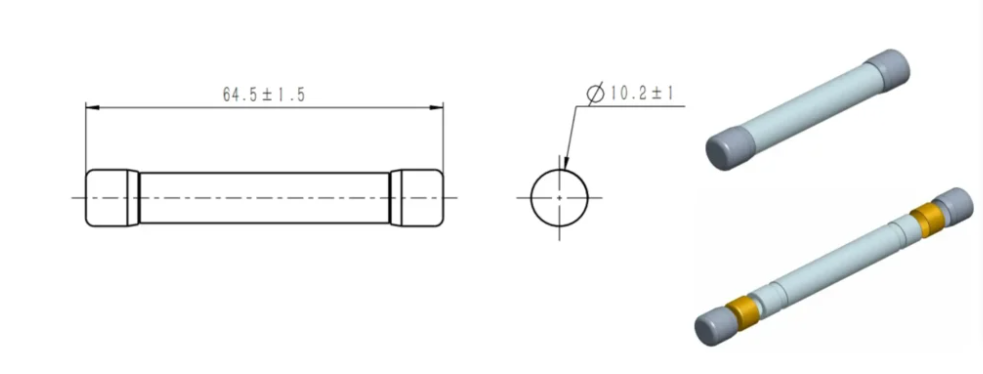

Dimensions (mm)



Description

  • Low I2t value (low let-through energy)
  • Strong current limiting capability
  • Low voltage drop
  • Excellent DC performance

Standards & Approvals

  • Refer to UL-248-19 / IEC 60269-1/6
  • Reach declaration available upon request
  • RoHS compliant

Features & Benefits

  • The GFPVT1500-10RS solar fuse is designed to integrate into an in-line assembly within a wire harness
  • Provides photovoltaic (PV) protection meeting UL 248-19 for photovoltaic applications
  • Can be electrically insulated by either over-molding or using heat-shrink
  • Meets IEC 60269-6 electrical performance requirements

Product Characteristics

Item Test Condition/Methods Standard Performance
Time/Current 100% of current rating IEC 60269/UL248-19 No Fusing；4 hours Min.
113% of current rating  *IEC IEC 60269 60 Minutes Min.
145% of current rating  *IEC IEC 60269 60 Minutes Max.
105% of current rating *UL UL-248.19 60 Minutes Min.
135% of current rating *UL UL-248.19 60 Minutes Max.
200% of current rating IEC 60269/UL248-19;1-30A 4 Minutes Max.
IEC 60269/UL248-19;31-60A 6 Minutes Max.
Endurance Test 100% of rating current for 4 hours and testing Temperature rise at the last 5min. IEC 60269-6 UL248-19 ≤65K
  • Loading 100% Rated Current (1.0In A) for flowing, and it’s available to let current keep on flowing at least 4 hour without any melting.

Fuse Ratings

Part No. Fuse Amps Average @30KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2s Clearing 80% 100% UL TUV
GFPVT1500-10A-10RS 10 342 890 2 3 ○ Pending ○ Pending
GFPVT1500-15A-10RS 15 550 1230 2.8 3.5 ○ Pending ○ Pending
GFPVT1500-20A-10RS 20 660 1450 3.2 5.5 ○ Pending ○ Pending
GFPVT1500-25A-10RS 25 885 1850 3.3 6 ○ Pending ○ Pending
GFPVT1500-30A-10RS 30 790 2750 3.8 6.8 ○ Pending ○ Pending
GFPVT1500-32A-10RS 32 1040 3550 4.2 8 ○ Pending ○ Pending
  • DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃；
