GFPVT1000光伏熔斷器(10X38)DC1000V

[附件: Download]

Dimensions (mm)

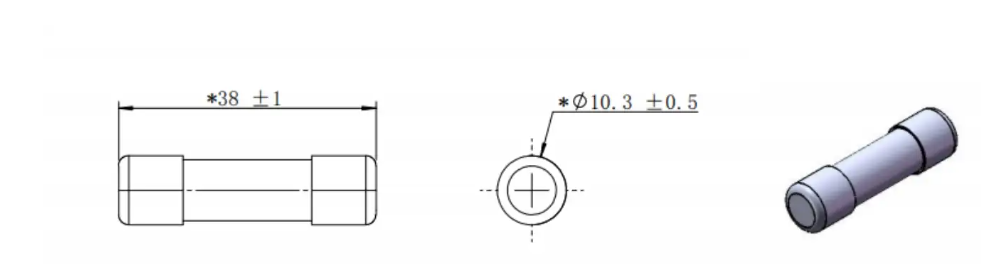

Ferrule xxA-10R Dimensions

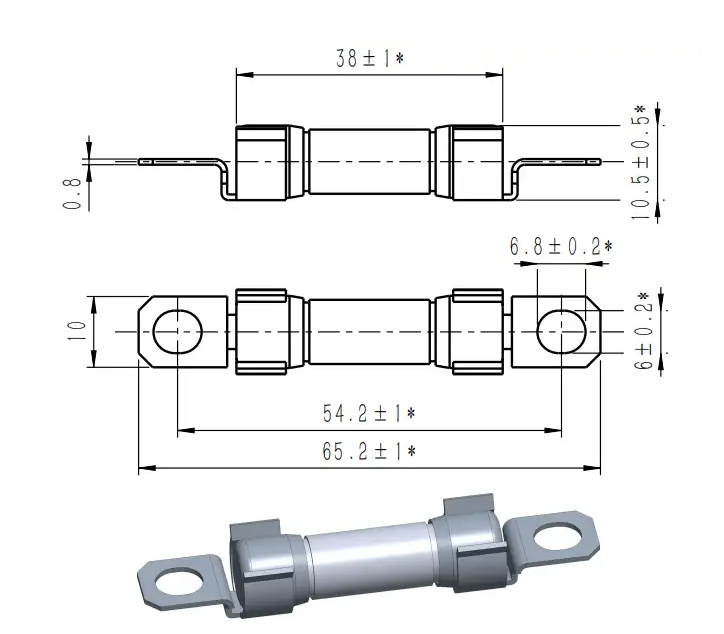

Axial bolt-on xxAP-10R Dimensions

Description

Low I2t value (low let-through energy)
Low voltage drop
Excellent DC performance
Variety of mounting options for flexibility

Standards & Approvals

Refer to UL-248-19 / IEC 60269-1/6
Reach declaration available upon request
RoHS compliant

Features & Benefits

The GFPVT1000 solar fuse is designed to integrate into an in-line assembly within a wire harness
Provides photovoltaic (PV) protection meeting UL 248-19 for photovoltaic applications
Can be electrically insulated by either over-molding or using heat-shrink
Meets IEC 60269-6 electrical performance requirements

Product Characteristics

Item	Test condition/Methods	Standard	Performance
Time/Current	100% of current rating	IEC 60269/UL248-19	No Fusing；4 hours Min.
	113% of current rating *IEC	IEC 60269	60 Minutes Min.
	145% of current rating *IEC	IEC 60269	60 Minutes Max.
	105% of current rating *UL	UL-248.19	60 Minutes Min.
	135% of current rating *UL	UL-248.19	60 Minutes Max.
	200% of current rating	IEC 60269/UL248-19;1-30A	4 Minutes Max.
	200% of current rating	IEC 60269/UL248-19;31-60A	6 Minutes Max.
Endurance Test	100% of rating current for 4 hours and testing Temperature rise at the last 5min.	IEC 60269-6 UL248-19	≤65K

Loading 100% Rated Current (1.0In A) for flowing, and it’s available to let current keep on flowing at least 4 hour without any melting.

Fuse Ratings

Ferrule xxA-10R

Part No.	Fuse Amps	Average @30KA/1000Vdc		Power Loss (W)		Approvals
Part No.	Fuse Amps	A2s Melting	A2s Clearing	80%	100%	TUV
GFPVT1000-10A-10R	10	210	1175	1.1	1.5
GFPVT1000-12A-10R	12	252	1405	1.3	1.7
GFPVT1000-15A-10R	15	315	1757	1.6	2.3
GFPVT1000-16A-10R	16	326	1780	1.6	2.3
GFPVT1000-20A-10R	20	420	2340	2.1	2.9
GFPVT1000-25A-10R	25	525	2929	2.7	3.5
GFPVT1000-30A-10R	30	630	3515	3.2	4.2
GFPVT1000-32A-10R	32	890	3995	4	5.3
GFPVT1000-35A-10R	35	975	4545	4.6	6.2

Axial bolt-on xxAP-10R

Part No.	Fuse Amps	Average @30KA/1000Vdc		Power Loss (W)		Approvals
Part No.	Fuse Amps	A2s Melting	A2s Clearing	80%	100%	TUV
GFPVT1000-10AP-10R	10	210	1175	1.1	1.5
GFPVT1000-12AP-10R	12	252	1405	1.3	1.7
GFPVT1000-15AP-10R	15	315	1757	1.6	2.3
GFPVT1000-16AP-10R	16	326	1780	1.6	2.3
GFPVT1000-20AP-10R	20	420	2340	2.1	2.9
GFPVT1000-25AP-10R	25	525	2929	2.7	3.5
GFPVT1000-30AP-10R	30	630	3515	3.2	4.2
GFPVT1000-32AP-10R	32	890	3995	4	5.3
GFPVT1000-35AP-10R	35	975	4545	4.6	6.2

DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃
