GFEVT1000-N-59E 高速熔斷器100A-800A 1000Vdc

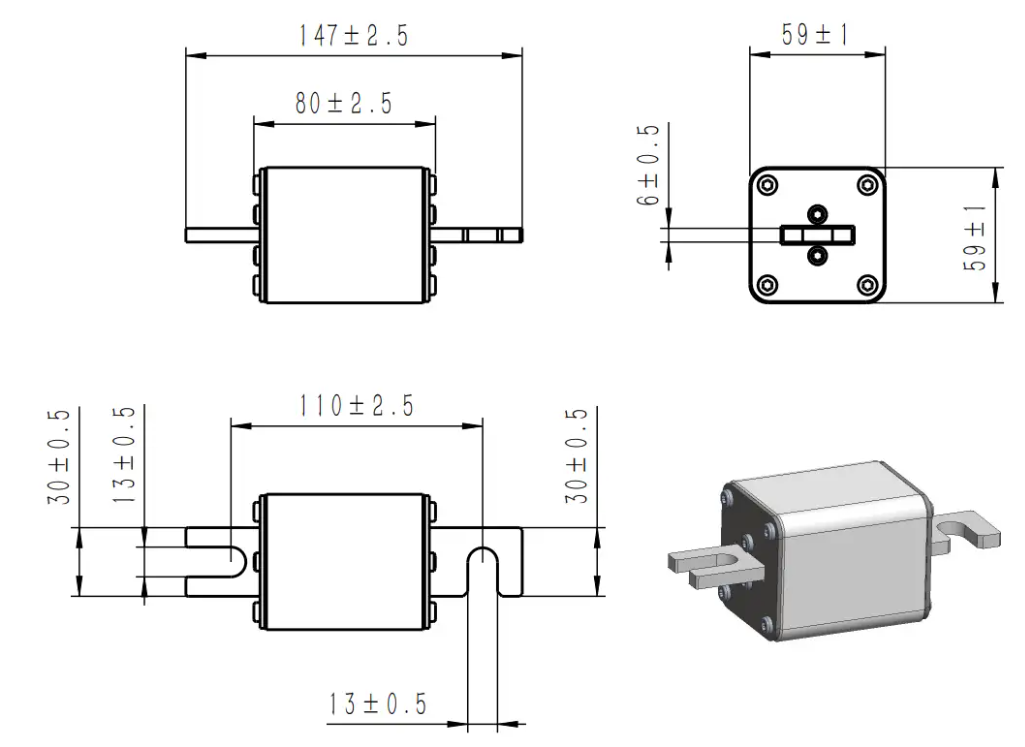

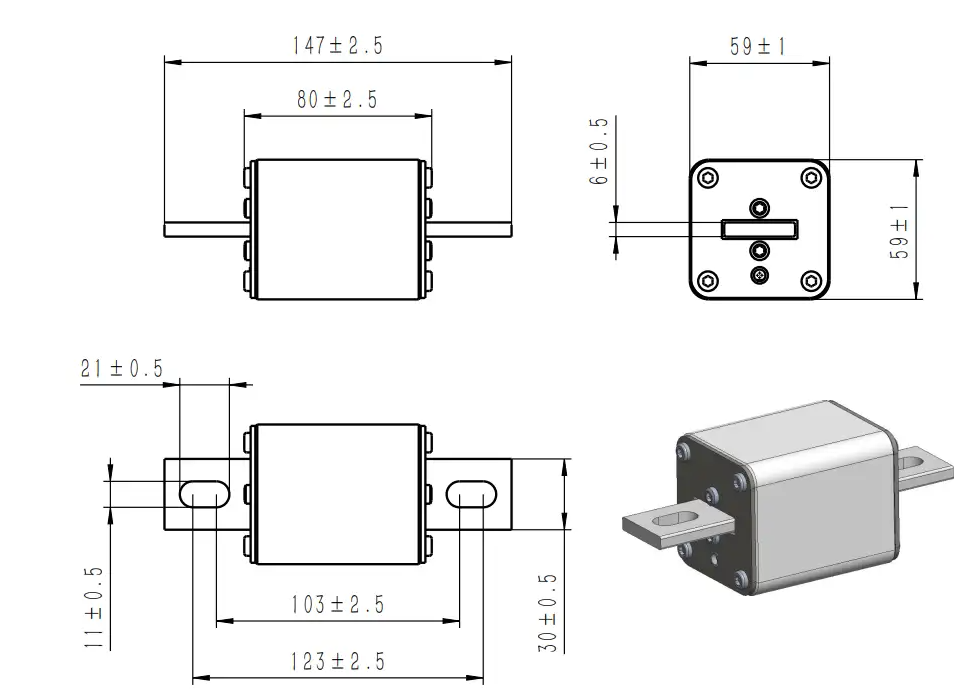

Dimensions (mm)

Bolted xxxBN-59E

Din xxxUN-59E

Description

Design For DC Applications
Excellent DC Performance
Low Watt Losses

Standards / Approvals

Refer To UL 248.1 / UL 248.13
IEC 60269.1 / IEC 60269.4
Reach Declaration Available Upon Request
RoHS Compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
Greater ampacity within sizing guidelines.
Excellent power of resisting voltaic impingement and environmental temperature tolerance.
Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect	Part No.	Fuse Amps	Size	Average @50KA/1000Vdc		Power Loss (W)	Approvals
Connect	Part No.	Fuse Amps	Size	A2s Melting	A2t Clearing	100%	ROHS	REACH
Bolted	GFEVT1000-100BN-59E	100A	2#	1,320	8,680	75	●	●
	GFEVT1000-125BN-59E	125A	2#	1,880	12,400	80	●	●
	GFEVT1000-160BN-59E	160A	2#	2,690	17,710	85	●	●
	GFEVT1000-200BN-59E	200A	2#	3,840	25,300	90	●	●
	GFEVT1000-250BN-59E	250A	2#	5,490	36,150	98	●	●
	GFEVT1000-275BN-59E	275A	2#	7,900	52,170	105	●	●
	GFEVT1000-315BN-59E	315A	2#	10,900	72,850	113	●	●
	GFEVT1000-350BN-59E	350A	2#	13,900	91,650	120	●	●
	GFEVT1000-400BN-59E	400A	2#	19,450	131,600	128	●	●
	GFEVT1000-450BN-59E	450A	2#	30,950	192,700	135	○	○
	GFEVT1000-500BN-59E	500A	2#	43,680	267,900	143	○	○
	GFEVT1000-550BN-59E	550A	2#	56,420	347,800	150	○	○
	GFEVT1000-630BN-59E	630A	2#	104,650	540,500	180	○	○
	GFEVT1000-700BN-59E	700A	2#	145,930	739,350	188	○	○
	GFEVT1000-800BN-59E	800A	2#	223,440	1,160,000	195	○	○

Connect	Part No.	Fuse Amps	Size	Average @50KA/1000Vdc		Power Loss (W)	Approvals
Connect	Part No.	Fuse Amps	Size	A2s Melting	A2t Clearing	100%	ROHS	REACH
Din	GFEVT1000-100UN-59E	100A	2#	1,320	8,680	75	●	●
	GFEVT1000-125UN-59E	125A	2#	1,880	12,400	80	●	●
	GFEVT1000-160UN -59E	160A	2#	2,690	17,710	85	●	●
	GFEVT1000-200UN -59E	200A	2#	3,840	25,300	90	●	●
	GFEVT1000-250UN-59E	250A	2#	5,490	36,150	98	●	●
	GFEVT1000-275UN-59E	275A	2#	7,900	52,170	105	●	●
	GFEVT1000-315UN-59E	315A	2#	10,900	72,850	113	●	●
	GFEVT1000-350UN-59E	350A	2#	13,900	91,650	120	●	●
	GFEVT1000-400UN-59E	400A	2#	19,450	131,600	128	●	●
	GFEVT1000-450UN-59E	450A	2#	30,950	192,700	135	○	○
	GFEVT1000-500UN-59E	500A	2#	43,680	267,900	143	○	○
	GFEVT1000-550UN-59E	550A	2#	56,420	347,800	150	○	○
	GFEVT1000-630UN-59E	630A	2#	104,650	540,500	180	○	○
	GFEVT1000-700UN-59E	700A	2#	145,930	739,350	188	○	○
	GFEVT1000-800UN-59E	800A	2#	223,440	1,160,000	195	○	○

I2t 1000Vdc 50kA，T：＜5ms；DC allows the maximum voltage：1048V
