GFEVT1000-B-59E高速熔斷器（100A-800A）1000dc

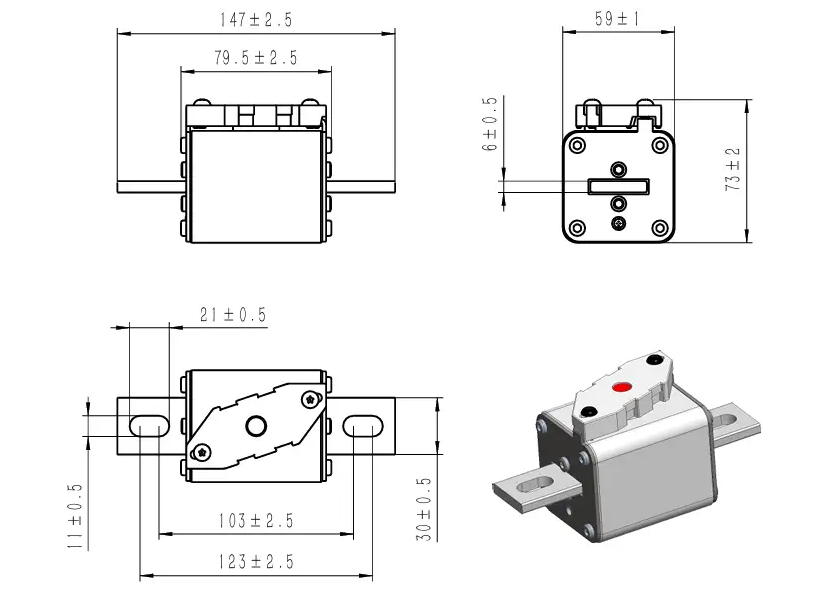

Dimensions (mm)

Bolted xxxB-59E

Description

Design For DC Applications
Excellent DC Performance
Low Watt Losses

Standards / Approvals

Refer To UL 248.1 / UL 248.13
IEC 60269.1 / IEC 60269.4
Reach Declaration Available Upon Request
RoHS Compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
Greater ampacity within sizing guidelines.
Excellent power of resisting voltaic impingement and environmental temperature tolerance.
Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect	Part No.	Fuse Amps	Size	Average @50KA/1000Vdc		Power Loss (W)	Approvals
Connect	Part No.	Fuse Amps	Size	A2s Melting	A2t Clearing	100%	ROHS	REACH
Bolted	GFEVT1000-100B-59E	100A	2#	1,320	8,680	75
	GFEVT1000-125B-59E	125A	2#	1,880	12,400	80
	GFEVT1000-160B-59E	160A	2#	2,690	17,710	85
	GFEVT1000-200B-59E	200A	2#	3,840	25,300	90
	GFEVT1000-250B-59E	250A	2#	5,490	36,150	98
	GFEVT1000-275B-59E	275A	2#	7,900	52,170	105
	GFEVT1000-315B-59E	315A	2#	10,900	72,850	113
	GFEVT1000-350B-59E	350A	2#	13,900	91,650	120
	GFEVT1000-400B-59E	400A	2#	19,450	131,600	128
	GFEVT1000-450B-59E	450A	2#	30,950	192,700	135
	GFEVT1000-500B-59E	500A	2#	43,680	267,900	143
	GFEVT1000-550B-59E	550A	2#	56,420	347,800	150
	GFEVT1000-630B-59E	630A	2#	104,650	540,500	180
	GFEVT1000-700B-59E	700A	2#	145,930	739,350	188
	GFEVT1000-800B-59E	800A	2#	223,440	1,160,000	195

Connect	Part No.	Fuse Amps	Size	Average @50KA/1000Vdc		Power Loss (W)	Approvals
Connect	Part No.	Fuse Amps	Size	A2s Melting	A2t Clearing	100%	ROHS	REACH
Customize	GFEVT1000-100K-59E	100A	2#	1,320	8,680	75
	GFEVT1000-125K-59E	125A	2#	1,880	12,400	80
	GFEVT1000-160K-59E	160A	2#	2,690	17,710	85
	GFEVT1000-200K-59E	200A	2#	3,840	25,300	90
	GFEVT1000-250K-59E	250A	2#	5,490	36,150	98
	GFEVT1000-275K-59E	275A	2#	7,900	52,170	105
	GFEVT1000-315K-59E	315A	2#	10,900	72,850	113
	GFEVT1000-350K-59E	350A	2#	13,900	91,650	120
	GFEVT1000-400K-59E	400A	2#	19,450	131,600	128
	GFEVT1000-450K-59E	450A	2#	30,950	192,700	135
	GFEVT1000-500K-59E	500A	2#	43,680	267,900	143
	GFEVT1000-550K-59E	550A	2#	56,420	347,800	150
	GFEVT1000-630K-59E	630A	2#	104,650	540,500	180
	GFEVT1000-700K-59E	700A	2#	145,930	739,350	188
	GFEVT1000-800K-59E	800A	2#	223,440	1,160,000	195

I2t 1000Vdc 50kA，T：＜5ms；DC allows the maximum voltage：1048V

ijzzz.com-99久久精品情趣,欧美影院一区二区三区,成人在线免费观看网站,久久不射2019中文字幕

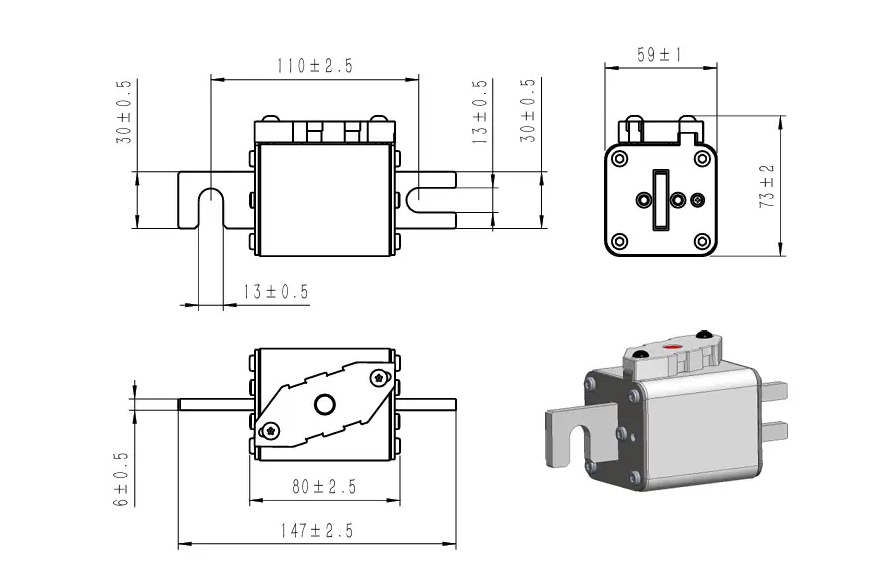

Dimensions (mm)
