GFEVT2000高速熔斷器250A-800A 2000Vdc

[附件: Download]

Dimensions (mm)

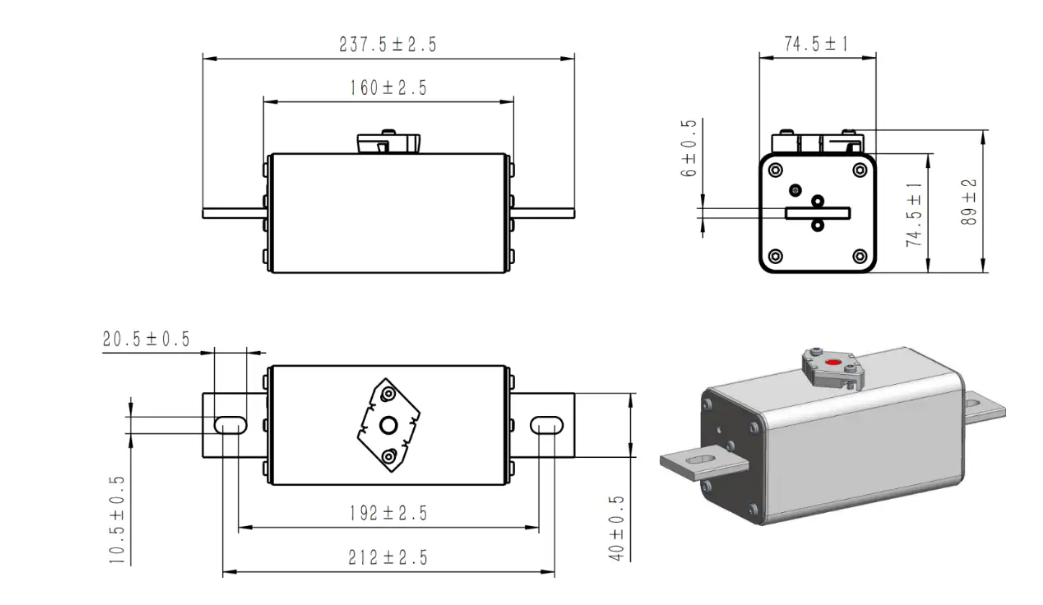

Bolted xxxB-74E Dimensions

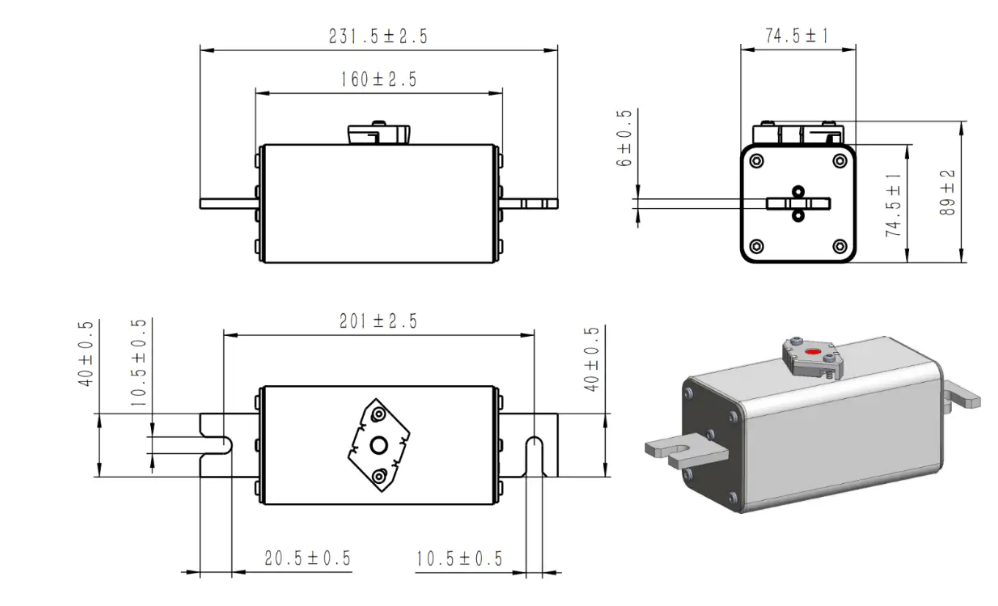

Din xxxU-74E Dimensions

Description

Standards & Approvals

Refer to UL248.13 or IEC60269.4
RoHS compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components
Can be applied in parallel to achieve greater ampacity within sizing guidelines
Excellent resistance to voltaic impingement and environmental temperature tolerance
Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Part No.	Fuse Amps	Average @100KA/ 2000Vdc		Power Loss (W)	Weight Pcs /g	Pcs / Box	Standard recommended bolts	Installation torque
Part No.	Fuse Amps	A2s Melting	Azt Clearing	100%	重量g	整箱數量Pcs	推薦使用螺栓	推薦螺栓扭矩
GFEVT2000-250B-74E	250A	27,430	115,560	126	2600±10%	8 Pcs	M1O	23.0±1.0N.m
GFEVT2000-315B-74E	315A	52,961	222,560	150	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-350B-74E	350A	71,213	299,600	163	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-400B-74E	400A	103,812	436,560	180	2600±10%	8 Pcs	M1O	23.0±1.0N.m
GFEVT2000-450B-74E	450A	149,810	630,230	195	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-500B-74E	500A	203,615	856,000	212	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-550B-74E	550A	275,355	1,155,600	225	2600±10%	8 Pcs	M1O	23.0±1.0N.m
GFEVT2000-630B-74E	630A	414,615	1,744,100	250	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-700B-74E	700A	569,700	2,396,800	272	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-800B-74E	800A	847,165	3,563,100	305	2600±10%	8 Pcs	M10	23.0±1.0N.m

Part No.	Fuse Amps	Average @100KA/ 2000Vdc		Power Loss (W)	Weight Pcs /g	Pcs / Box	Standard recommended bolts	Installation torque
Part No.	Fuse Amps	A2s Melting	Azt Clearing	100%	重量g	整箱數量Pcs	推薦使用螺栓	推薦螺栓扭矩
GFEVT2000-250U-74E	250A	27,430	115,560	132	2600±10%	8 Pcs	M1O	23.0±1.0N.m
GFEVT2000-315U-74E	315A	52,961	222,560	156	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-350U-74E	350A	71,213	299,600	170	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-400U-74E	400A	103,812	436,560	188	2600±10%	8 Pcs	M1O	23.0±1.0N.m
GFEVT2000-450U-74E	450A	149,810	630,230	204	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-500U-74E	500A	203,615	856,000	221	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-550U-74E	550A	275,355	1,155,600	235	2600±10%	8 Pcs	M1O	23.0±1.0N.m
GFEVT2000-630U-74E	630A	414,615	1,744,100	261	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-700U-74E	700A	569,700	2,396,800	284	2600±10%	8 Pcs	M10	23.0±1.0N.m
GFEVT2000-800U-74E	800A	847,165	3,563,100	318	2600±10%	8 Pcs	M10	23.0±1.0N.m
