GFEVT1000-xxx KN-51E
The GFEVT1000-K-51E Series high-voltage DC fuse is specially engineered for secure and efficient protection of DC circuits. Rated at 1000Vdc with current options from 100A to 630A, and an interrupting capacity of up to 50kA, it is suitable for demanding energy storage, photovoltaic, and industrial applications. The series ensures fast response to fault currents and reliable circuit isolation under harsh conditions.
| Part No. | Fuse Amps | Size | Average @50KA/1000Vdc T：≤3ms | Power Loss (W) | |
|---|---|---|---|---|---|
| A2s Melting | A2t Clearing | 100% | |||
| GFEVT1000-100K-51E | 100 | 1# | 980 | 4,400 | 42 |
| GFEVT1000-125K-51E | 125 | 1# | 1,180 | 5,300 | 46 |
| GFEVT1000-160K-51E | 160 | 1# | 2,240 | 10,050 | 50 |
| GFEVT1000-200K-51E | 200 | 1# | 4,360 | 19,970 | 56 |
| GFEVT1000-250K-51E | 250 | 1# | 9,320 | 40,870 | 62 |
| GFEVT1000-315K-51E | 315 | 1# | 17,900 | 79,060 | 68 |
| GFEVT1000-350K-51E | 350 | 1# | 23,000 | 107,200 | 76 |
| GFEVT1000-400K-51E | 400 | 1# | 35,100 | 154,100 | 86 |
| GFEVT1000-450K-51E | 450 | 1# | 50,600 | 221,100 | 95 |
| GFEVT1000-500K-51E | 500 | 1# | 83,500 | 288,100 | 102 |
| GFEVT1000-550K-51E | 550 | 1# | 114,700 | 391,900 | 133 |
| GFEVT1000-630K-51E | 630 | 1# | 155,000 | 445,000 | 140 |

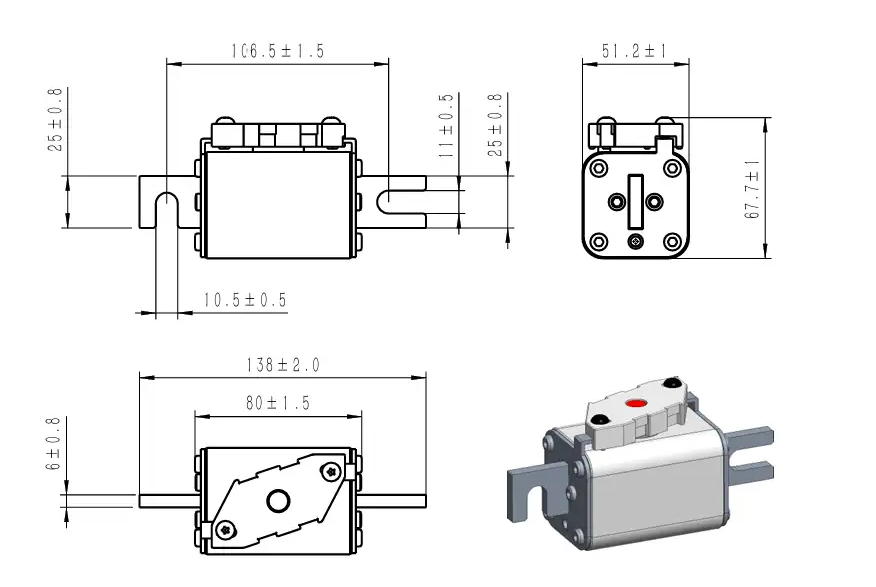

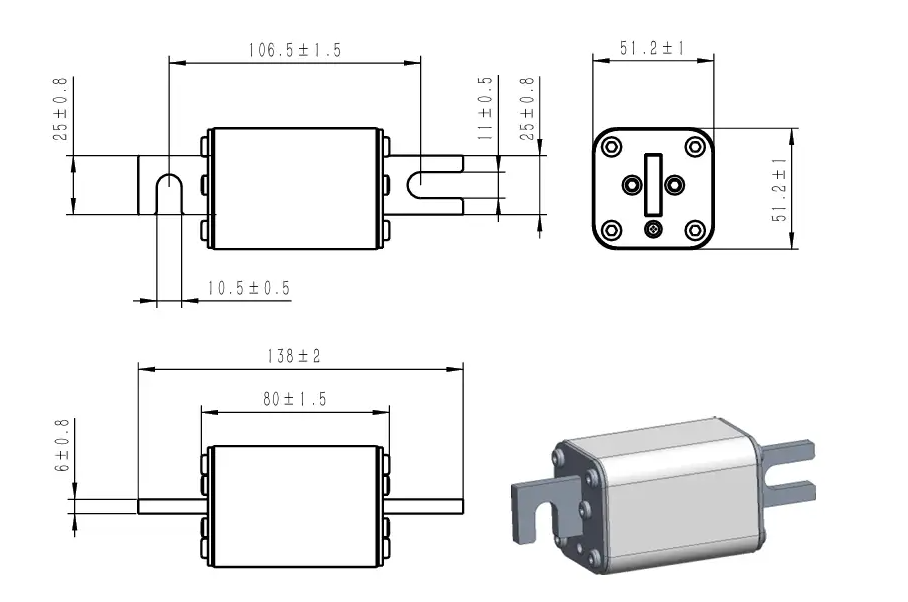

| Optional base indicator, the standard product is the “Default” configuration.Default: K–with fuse indication, e.g.: GFEVT1000-630K-51E;Optional: KN–without fuse indication, e.g.: GFEVT1000-630KN-51E; | |||||
